BAB DESAPPAIREE / VAD All RED KO

BAB DESAPPAIREE / VAD All RED KO

Symptoms:
=> VAD completely red.

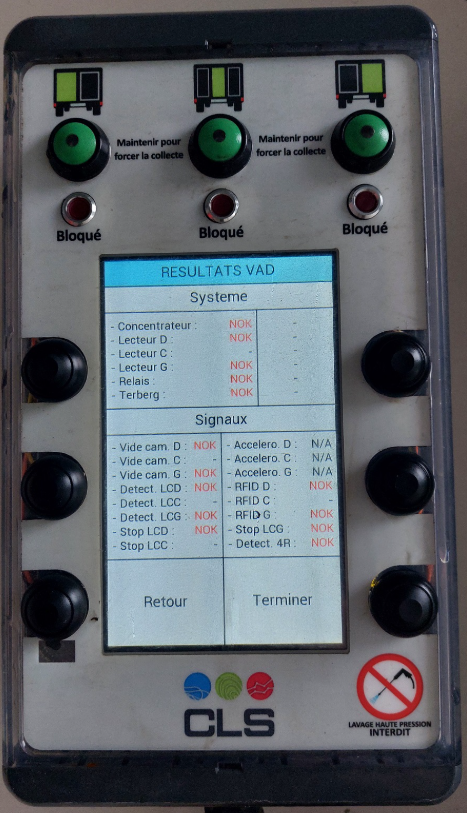

Example below:

Reason:Human mistake
=> Before tracity version 1.3.1, handling to unappair the BAB could be confused with selecting the LCs to be checked. (3S on the left button at the top then 3s on the right button at the top)

Explanation:
=> Since the button box is connected with all other systems, when dice it no longer recognizes any devices.

Metodo/customer communication:

I think the button box is unpaired.
Can you try to reappair it?

You can follow the procedure below
  • Turn on the vehicle engine
  • Once all the devices are on, it can get into the "administration" mode of the tablet to allow it to see a 2nd check to connect the elements between them.
  1. Click on the 3 lines at the top left
  2. Click on "Administration
  3. Enter the password "nova08"
  4. Go in"Incentive pricing" and then "Manage"
  5. You need to see the items paired together, the button box should have a "Logout" line.

This is:

  • Getting to the rear of the vehicle with a magnet
  • Place the magnet on the "concentrator" module next to the button box. (CONCENTRATor is written on it)
  • A red LED validates the detection of the magnet. As soon as this red LED appears, leave the magnet until a single orange LED flashing appears.
  • Remove the magnet
  • The LED of the hub will then switch to fixed orange.
  • On the button box, press about 3s on the 1st of the 6 black buttons, the one at the top left, until you start VAD mode.
  • Once on VAD mode, press the 2nd of the 6 black buttons, the one at the top right, for about 3s also, until you see, in the skylight of the BAB a quick flashing. *
  • Release the button, and wait for the LED to change from red to orange, flashing every second.
  • The BAB is then paired.

He can check by returning to the cabin, at the level of the NAVDROID tablet, in the Administration, Incentive Pricing, GERERER menu, to verify that the BAB is rated as connected.

Sometimes you have to exit and return to this menu several times, until you see the connected button box appears.


I share with you the video that can be useful.
Can you validate the above procedure for me?



Useful links:
TRACITY - pairing button box (1).mp4=> download and PC for the customer, hosted
